Anti-Cross Thread Technology
Benefits
Corrects cross threading
Improves assembly ease
Eliminates hand starting
Assists in alignment
Clears paint filled threads
Unaffected by installation speed
Features
Standard machine screw threads

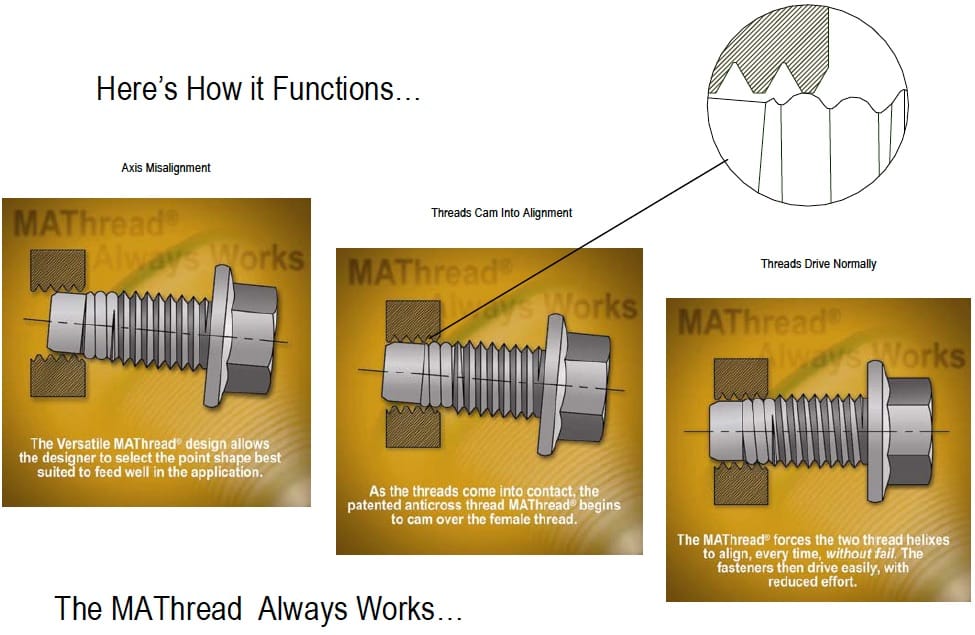

Unique self correcting radiused threads

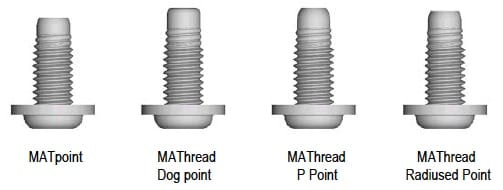

Various point designs for short and deep hole configurations allowing for up to 15° off angle assembly
In Billions of Installations, MAThread®:
-
Fixed Cross-Threading - It never Cross-Threads
-
Eased Every Assembly - Installers Say it "Glides" in
-
Aligned Components - Finds Holes and Forces Itself Straight
-
Fixed logged Internal THreads - Slides Through Paint Build-Ups
MAThread Technology Makes Every Job User-Friendly!
Superior Performance Features:
-
The Most Versatile Anti-Cross Thread Product
-
Works With All Types of Nuts & Internal Threads – Including Lock Nuts
-

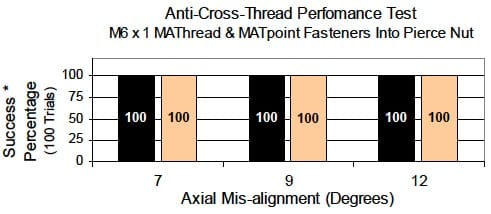

Unmatched Anti-Cross-thread Performance
Typical test data is shown; we invite you to visit our lab and verify this data by running the parts yourself!
-
Unaffected by Paint in Internal Threads, Eliminating the Need for ‘Paint-Cutters’ and Paint-Cutting Features
Specifications:
|
Sizes: |
M3-M18 |
#4 - 5/8" |
|---|---|---|
|
Lengths: |
Up to 140mm |
Up to 5½" |
|
Head Styles: |
All, including Double Ended Studs & Cold Formed Specials |
|
|
Finishes: |
All Commercially Available Finishes |
|
|
Materials: |
Carbon Steel & Alloy Steels, Stainless Steel, Brass, Copper |
|
Additional Family Products
Data Sheet(s)
