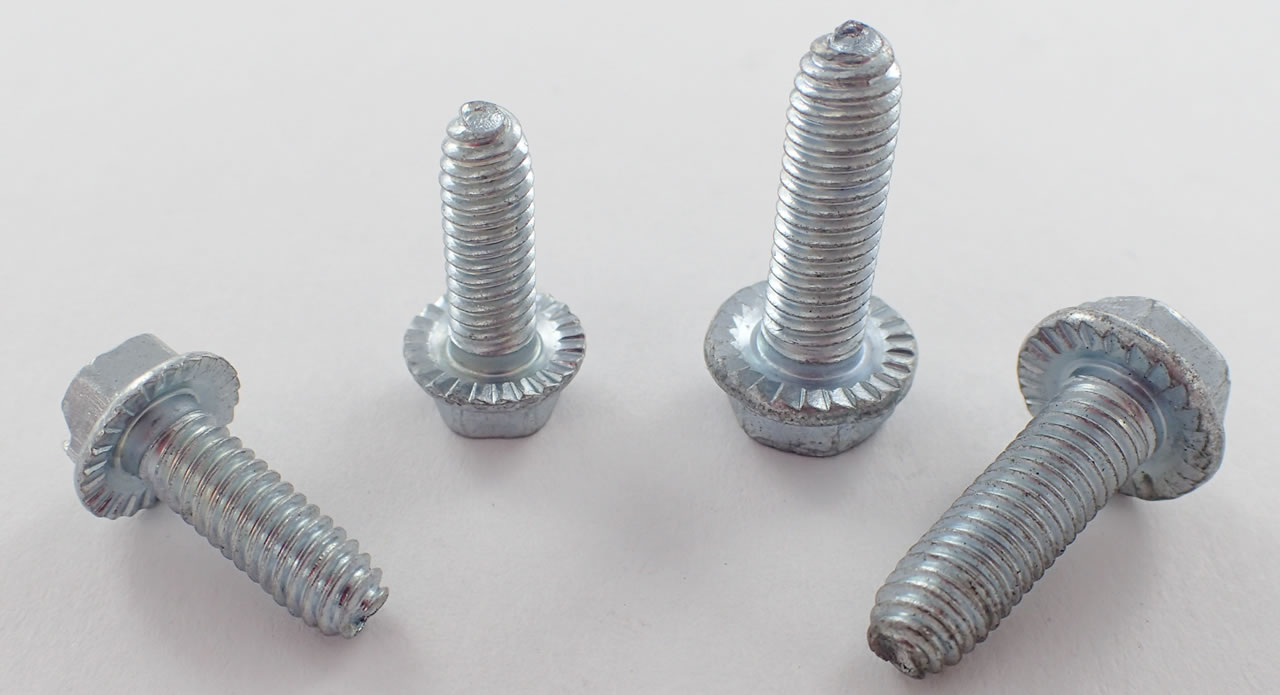

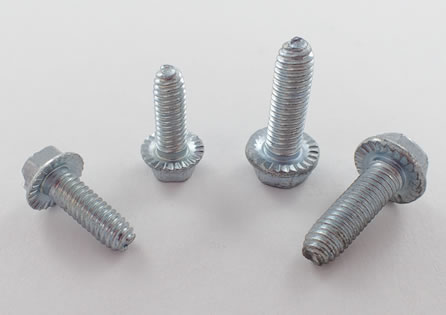

Fasteners for Thin Sheet Metal
Benefits
High resistance to thread stripping
CA point design provides easy entry and extruding action in small holes
Opposing threads of twin helix design prevent off-angle assembly
Excellent resistance to vibrational loosening

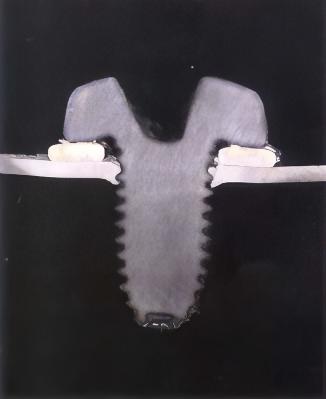

Undercut area allows for flush seating even with extruding effect
Undercut accepts material extruded upward
Features

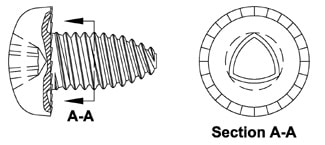

TRILOBULAR® body
Twin helix thread design
Innovative Radius Profile™ thread
Increased thread cross section under head
CA style point - Available in dull or sharp configuration

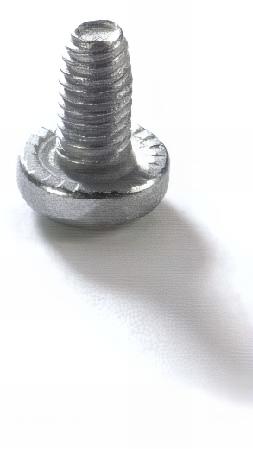

Undercut under head
THE SOLUTION FOR THIN SHEET METAL APPLICATIONS
Over the last several years, the industry has improved assembly processes and reduced the size and weight of components made from thin sheet metal and fasteners used to join these components. As a result, 0.5mm thick sheet metal is not an uncommon thickness for a typical assembly. Yet today's assembly solutions are limited and often poorly designed for joint performance and overall cost efficiency.
FASTITE® 2000™ thread-forming screws were developed to create strong mechanical joints with excellent thread engagement into untapped thin sheets while providing the "LOWER IN-PLACE COST SAVINGS" associated with TRILOBULAR™ thread-forming screws. FASTITE® 2000™ screws result in a cost-effective joint with increased failure torque and resistance to stripping when compared to other fastener types and assemblies.
FASTITE 2000™ Fastener Performance
Fasteners:
M4 x 0.7 x 7mm Pozidriv Undercut Pan Head
w/ Optional Serrations Under Head Zinc Finish
M5 x 0.8 x 9mm Pozidriv Undercut Pan Head
w/ Optional Serrations Under Head Zinc Finish
Material: Steel, 0.8mm and 1.6mm thick
Hardness: RB 85 {Brinell 142 (500kg)} Finish: Plain

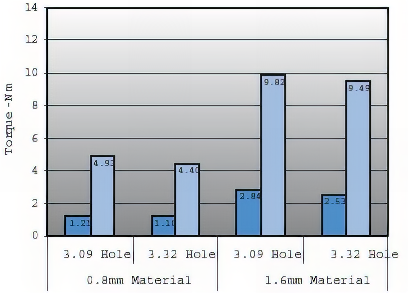

M4 FASTITE ® 2000™ Fastener Performance

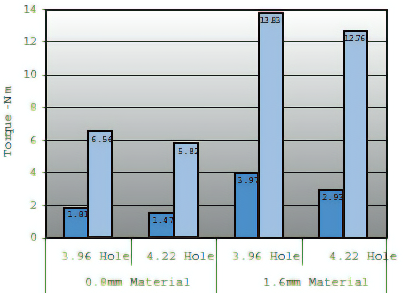

M5 FASTITE ® 2000™ Fastener Performance
Material: Aluminum, 6061-T6, 0.8mm and 1.6mm thick.
Hardness: RB51 {Brinell 84 (500kg)} Finish: Plain

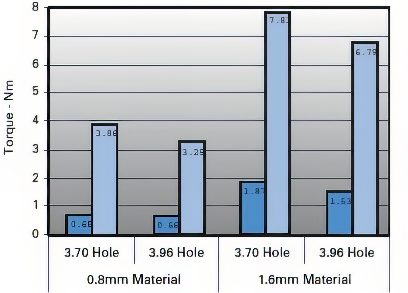

M4 FASTITE® 2000™ Fastener Performance
M5 FASTITE ® 2000™ Fastener Performance

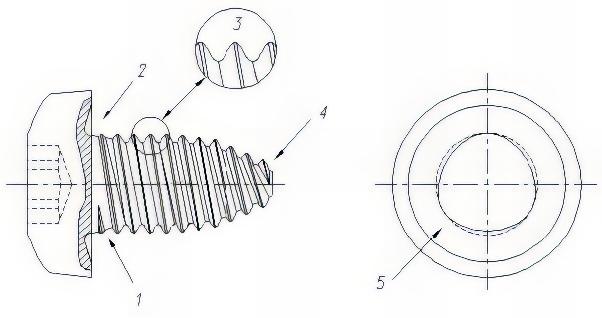

Performance Features
- Tapered thread root adjacent to the screw head to maintain major thread diameter close to the head.
- Undercut feature to increase assembly failure torque.
- Radius Profile™ thread design combined with the twin-lead helix angle provides a mating thread system that engages diametrically opposed threads.
- There is no cut-off "CA" style point for extruding in small holes.
- TRILOBULAR™ screw thread body to provide "resistance to loosening."

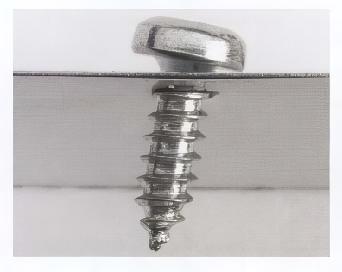

Standard-type AB screws lean over as the screw tends to align with the helix angle of the thread. Stripped threads or loose assemblies result.

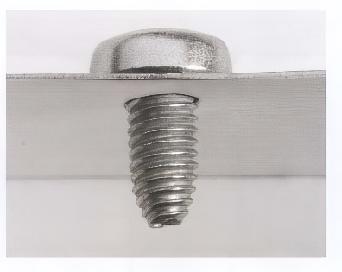

FASTITE 2000™ fastener starts and finishes straight, providing a secure, tight assembly. The twin-lead thread centers the fastener in the hole.
