New Thread/Point Technology for Carbon Fiber Reinforced Plastic
Benefits
No pilot hole required
Easy disassembly and reassembly
Optimized Delta PT® thread forms strong female thread in the carbon fiber reinforced plastic
Features
Couples a unique point feature with Delta PT® thread
Available in stainless steel, steel and aluminum
FLOWpoint Delta PT® Application Testing Equipment
Carbon fiber reinforced plastic (CFRP) continues to set current and future lightweighting trends in the Automotive Industry.

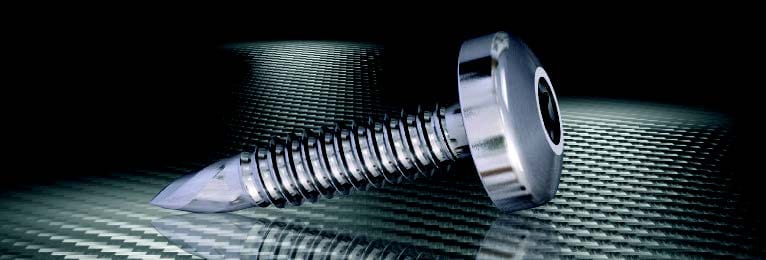

The FLOWpoint DELTA PT® screw is an innovative fastener developed to meet the challenging demands of joining these highly engineered CFRP materials. It combines two proven EJOT technologies into one screw.

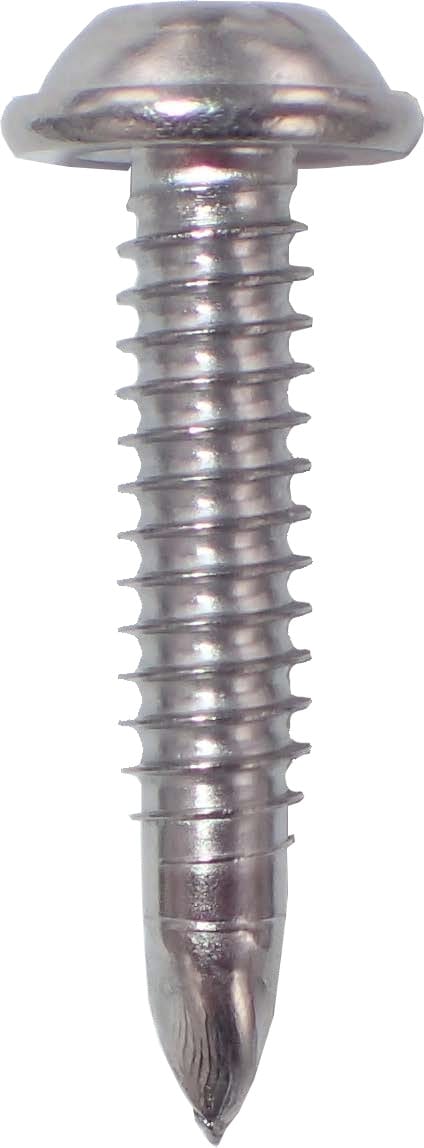

The FLOWpoint DELTA PT® is a self-piercing and self-tapping screw that penetrates both the clamped and mating material without a pilot hole. The optimized DELTA PT® thread geometry forms a strong female thread in the carbon fiber-reinforced plastic.
Features of the FLOWpoint DELTA PT®
- No pilot hole required; tolerance compensation is possible
- High-quality threaded joint without part preparation
- Applicable for many varieties of CFRP
- Easy disassembly and reassembly
- Available in Stainless Steel, Steel, Aluminum
- Hybrid joining possible (e. g. Aluminum to CFRP)

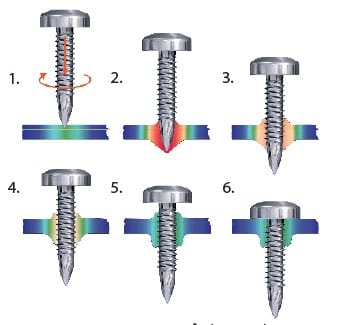

- Rotation of screw and application of axial end load
- Warming up and penetration of the material
- Screw hole calibration and formation of extrusion
- Thread forming
- Full thread engagement
- Tightening
The Recess Drive
Available with most common automotive drive systems
The material
- Aluminum
- Through Hardened Steel
- Stainless Steel
The Tip
The unique self-piercing forming zone and sharp point allow a pilot hole-free, self-tapping screw joint.
The Head Geometry
Available in most common automotive head styles.
The Thread
The renowned DELTA PT® thread has been further optimized to create a strong, reliable, and removable thread for CFRP materials.
