PlasTORX®

PlasTorx Fastener for Plastic Assemblies
Fastener for Plastic Assemblies

PlasTORX®

Torx Configuration Fastener for Plastic Assemblies

Benefits

Molded into plastic to replace metal stamping and fastener assemblies

High resistance to rotation and pull-out forces

Can be used in materials susceptible to cracking

Features

Hex-lobular Torx® configuration

Flange on top of head enhances captivation performance in molded plastic


PlasTORX® FASTENERS FOR PLASTIC ASSEMBLIES

Developed to be molded into plastic and replace metal stamping and fastener assemblies, PlasTORX® studs are engineered to provide high resistance to rotation and pull-out, ensuring a high-performance assembly. Its hex-lobular design helps reduce stress risers so that it can be used in materials susceptible to cracking or breaking.

PlasTORX® Fastener

SPECIFICATIONS

Sizes
M4 - M12 (#8 - 1/2")

Lengths
Per customer design

Thread Styles
Machine screw; others as specified

Specials
Completed assemblies available

APPLICATIONS

Injection-molded thermoplastics and rubber

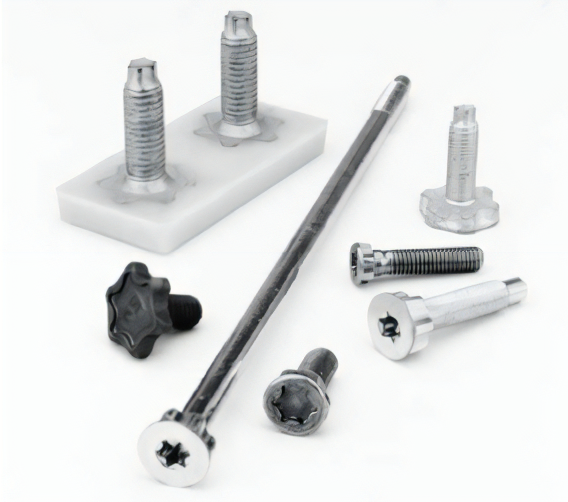

PlasTORX® Fastener

KEY ADVANTAGES

  • Molded directly into application, which increases assembly efficiency
  • Provides maximum resistance to rotation and pull-out
  • Can be used in materials susceptible to cracking

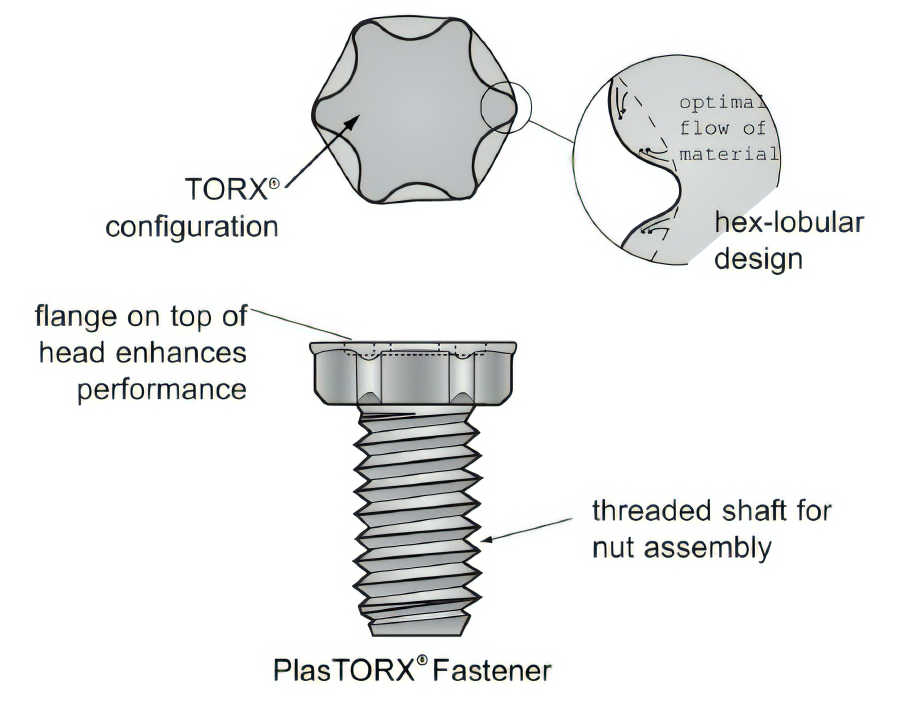

FEATURES & BENEFITS

  • Hex-lobular TORX® configuration allows deep lobe engagement
  • Increases torsional resistance
  • Increases pull-out resistance
  • Reduces stress risers

The flange on top of the head enhances the performance

  • Increases pull-out resistance

Threaded shaft for seating nut member

Designed to be molded directly into component or carrier strips, allowing multiple fasteners to be installed at one time.

  • Reduces assembly time
  • Reduces part numbers and associated costs
  • Reduces overall costs

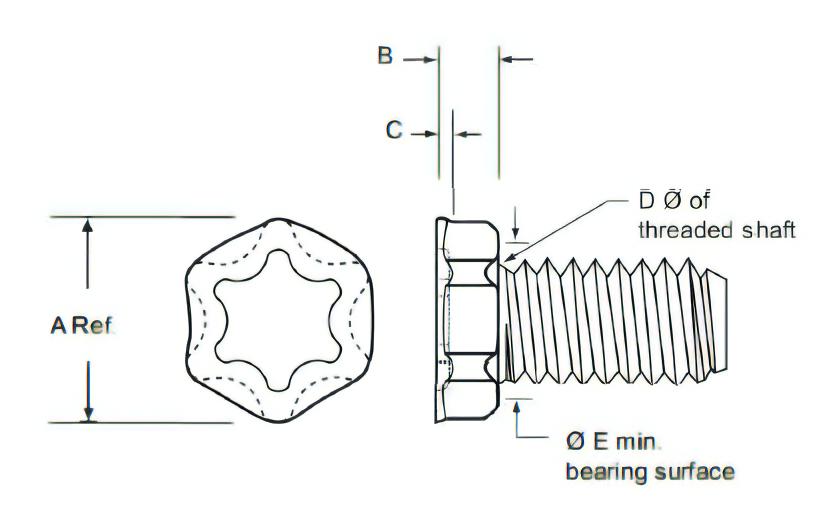

PLASTORX® FASTENERS



  • Contour may vary between lobes within specified dimensions.
  • Dimensions shown are for low-carbon steel fasteners. For other materials or modified designs, contact Semblex Engineering Services.
  • Performance is determined by application material.
