Security Drive System
Benefits
Allows optimum torque transfer and increased drivability
Allows improved productivity on the assembly line

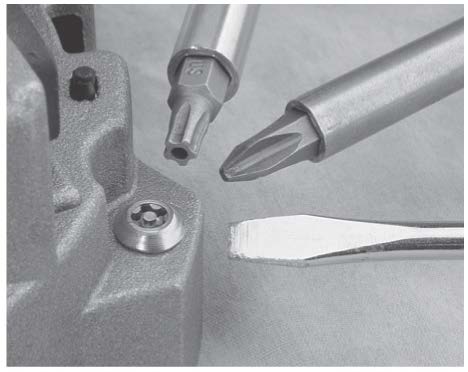

Non-symmetrical shape provides increased resistance to tampering
Limited access to drivers maintains integrity of system
Features
Non-symmetrical, elliptically-based geometric configuration

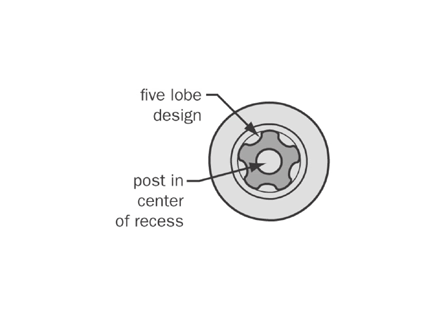

Five lobes with solid post in center of recess
Drivers only available to OEM's and authorized service personnel

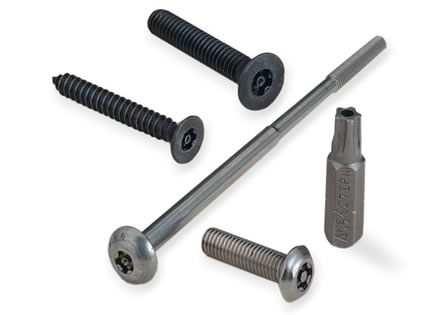

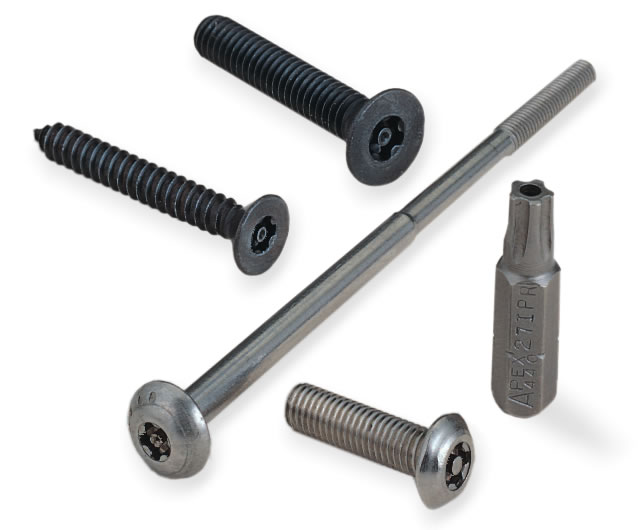

Manufacturers worldwide are discovering how the TORX PLUS® Drive increases torque transfer, extends tool life, and increases productivity on their assembly lines. Now, these benefits are available in a unique tamper-resistant version. When combined with a countersunk or button head design, the tamper-resistant TORX PLUS® fastener is extremely difficult to remove without the proper tool.
PROVIDES RESTRICTED ACCESS TO ANY APPLICATION
The tamper-resistant TORX PLUS® Drive offers restricted access in the field along with all the assembly benefits of the TORX PLUS® Drive.
Features

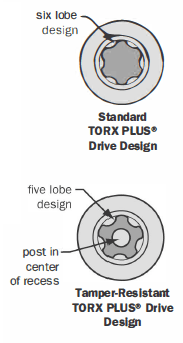

- Non-symmetrical, elliptically-based geometric configuration
- Five lobes with a solid post in the center of the recess
- Drivers only available to OEMs and authorized service personnel

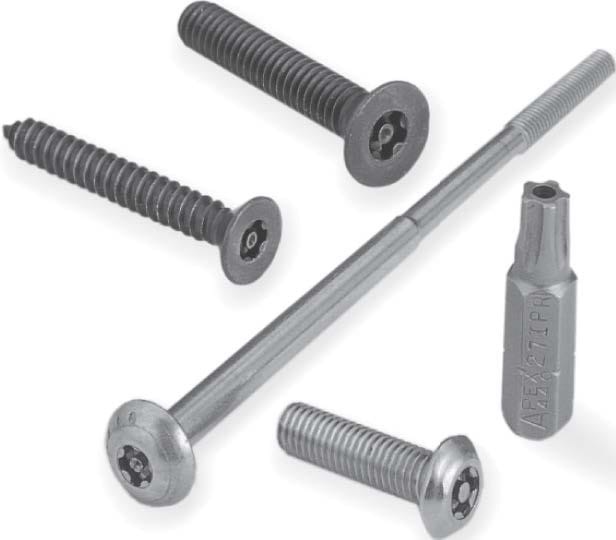

- Concentricity and tight tolerances of tamper-resistant TORX PLUS® tools make them very difficult to counterfeit
Benefits
- Allows optimum torque transfer and increased driveability
Allows improved productivity on the assembly line- Non-symmetrical shape provides increased resistance to tampering
- Limited access to proper drivers maintains the integrity of the system
Standard Design Guidelines
Fastener Sizes:
M2.5 to M18 (#3 to 3/4")
Head Design:
A countersunk or button-head design is recommended.
IMPROVES ASSEMBLY AND PROTECTS SYSTEMS

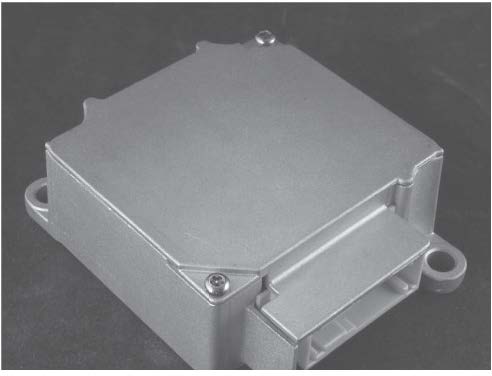

A manufacturer of power systems for electric vehicles needed a tamper-resistant fastener on the component's exterior to keep consumers away from its dangerous electrical currents. In addition, using hex and Phillips systems inside the component created debris from earnout that could short-circuit the system. These drive systems also could not provide enough torque to seat the fasteners properly. The loose fasteners created arcing, which would destroy the power supply. Switching to the tamper-resistant TORX PLUS® Drive System eliminated earnout and its resulting particulate matter and increased the torque that could be applied. It also prevents consumers from opening the component and possibly injuring themselves.
